AK-A188

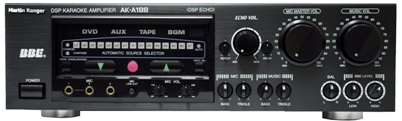

  500W DSP AV with BBE Engine Processor Mixing Karaoke Amplifier
















Package Includes:

  • Wireless Remote Control Unit(RC-8-2)

  • Power supply Cord

  • User's Menu



  SPECIFICATION
  • Maximum Power 500W+500W

  • Adopt Yamaha DSP High-End 3D Key Controller Chip

  • 15 step key controller ±2.5 tones

  • On-Screen Display for Advanced Setting

  • Built-in high quality stereo digital echo

  • Built-in BBE sound enhancement technology

  • Five Microphone Inputs( 3 Front & 2 Rear)

  • Four Pairs of Banana Speaker Terminals(2 Left+2 Right)

  • Dynamic range expander

  • Large keypad Infrared remote controller

  • Subwoofer output with subwoofer volume control

  • Vocal Cancel (up to 90% of music) and Vocal Partner Function

  • Echo Repeat, Echo Delay

  • 1 Year Manufacturer Warranty

  • Made in Taiwan

  • 4 Audio and Video Inputs with automatic source selector capability

  • 2 Video Outputs

  • 3 Microphones available simultaneously

  • 1 Audio Pre-out Terminal

  • 1 Recording output terminal for recorder component

  • 1 Remote Input for remote extender

  • 1 Background Video Input (BGV) Jack

  • 1 Background Music Input (BGM) Jack

  • Background Music Input with Level Control and Mono/Stereo Switch

  • Audio Input sensitivity switch

  • Dimensions (W x H x D):16.9" x 5.3" x 15,2"

  • Weight : 25Lbs








USER MANUEL (PDF)
