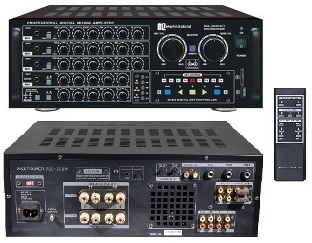

MA-3000K


600W Digital Echo Mixing Karaoke Amplifier













FEATURES:

  • Remote control for Master music volume, Master Mic. volume, Key and Input select.

  • Luxury Gold-Plated Speaker Terminals

  • Gold-Plated Mic-In, jack-In and Aux-in......

  • Die-cast Aluminum Panel

  • Sub woofer output with volume and frequency control

  • USB and SD Readers to playback MP3 Music

  • 2 RCA Audio Inputs

  • 1 Video input, 3 Video outputs Audio

  • Output: 750W+750W @ 4 Ohm

  • Microphone input sensitivity: 0<15mV

  • Frequency Band: 20Hz to 20kHz

  • 9 Step Digital Key Control.

  • Two Channels of Audio select

  • Two Channels of Video select

  • 4 x 1/4" Microphone Inputs in front. 3 at back.

  • Input Signal Attenuators

  • Auto-gain level indicators

  • Individual Microphone Volume Control

  • Individual Balance Control

  • Individual Echo Depth Control

  • Individual Bass/Mid-range/Treble Volume Control

  SPECIFICATION



Martin Roland MA3000KII is a truly powerful, yet pleasantly sounded, professional karaoke mixing amplifier. The MA3000KII is the hottest and the newest digital mixing amplifier, configured with all the essential karaoke features: 9-stepls, 32-Bit Digital Key controller, an echo volume, high/low, repeat and speed adjustment. This newest digital mixing amplifier comes with a built-in USB/SD Card MP3 Data Interface to playback your MP3 songs.



A true 750W+750W power yields the best quality sound that you can experience. Superior echo control along with tone control - treble, mid, bass - provide the ability to enhance music and vocals to improve your vocal performance.







Specification

MA 3000KII

Audio output Maximum

750W+750W@4

500W+500W@8

Mic Input Sensitivity

10 mV

External Device Sensitivity

200 mV

Signal To Noise Ratio (IHF A Filter)

80 dB

T.H.D (1 KHz , AUX 150mV Input)

0.1%

Frequency Response

20 Hz ~ 20 KHz

Mic. Tone Adjust Low

80 Hz ± 15dB

Mic. Tone Adjust: Mid

3.5 KHz ± 12dB

Mic. Tone Adjust: Hi

12 KHz ± 15dB

Echo Tone Adjust: Low

80 Hz ± 15dB

Echo Tone Adjust: Hi

12 KHz ± 15dB

Music Tone Adjust: Low

100 Hz ± 15dB

Music Tone Adjust: Mid

80 Hz ± 15dB

Music Tone Adjust: Hi

1KHz ±12dB

Mic. Tone Adjust: Hi

10KHz ± 15dB

Power Source

AC115V/ 230, 50Hz/60Hz




USER MANUEL (PDF)
